11.26 inch IPS TFT LCD Module with 440RGBx1920 Resolution and MIPI Interface

  • 11.26 inch IPS TFT LCD Module with 440RGBx1920 Resolution and MIPI Interface
  • 11.26 inch IPS TFT LCD Module with 440RGBx1920 Resolution and MIPI Interface
  • 11.26 inch IPS TFT LCD Module with 440RGBx1920 Resolution and MIPI Interface
  • 11.26 inch IPS TFT LCD Module with 440RGBx1920 Resolution and MIPI Interface
  • 11.26 inch IPS TFT LCD Module with 440RGBx1920 Resolution and MIPI Interface
  • 11.26 inch IPS TFT LCD Module with 440RGBx1920 Resolution and MIPI Interface
  • 11.26 inch IPS TFT LCD Module with 440RGBx1920 Resolution and MIPI Interface
Plaats van herkomst China
Merknaam HuaXin
Certificering ISO14001/ISO9001/IATF16949
Modelnummer HX116003A
Min. bestelaantal 1000
Prijs Onderhandelbaar
Verpakking Details Blister+schuimdoos+bellentas+binnenkarton+hoofdkarton
Levertijd 6WEKS ~ 8WEKS
Betalingscondities T/T
Levering vermogen 100.000 per maand.
Productdetails
Weergavetechnologie IPS TFT Naam TFT LCD-module
Maat 11,26" Oplossing 440(RGB)*1920
Drijven IC ICN9707 Hoek bekijken ALLE 0' klok
Interface MIPI
Markeren

11.26 inch TFT LCD Module

,

440RGBx1920 resolution IPS TFT Display

,

MIPI Interface LCD Module
Laat een bericht achter
Productomschrijving

11.26 inch IPS TFT LCD Module, 440RGBx1920 resolution , MIPI Interface,500 brightness, Driving IC ICN9707 16LEDS
Product Specifications
Part NO.  HX116003A
Display Technology IPS TFT LCD
Diagonal Screen Size 11.26inch
Active Area (mm) 57.948(H)X252.864(V)
Panel size(mm)  64.98(H)X266.39(V)X4.6(T)
Brightness(cd/m2) 500
Resolution 440(RGB)*1920
Interface MIPI
View angle ALL o'clock
Driving IC   ICN9707

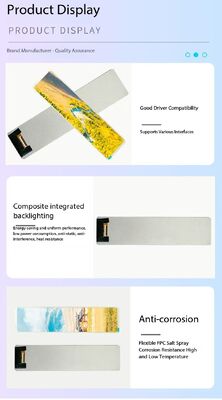

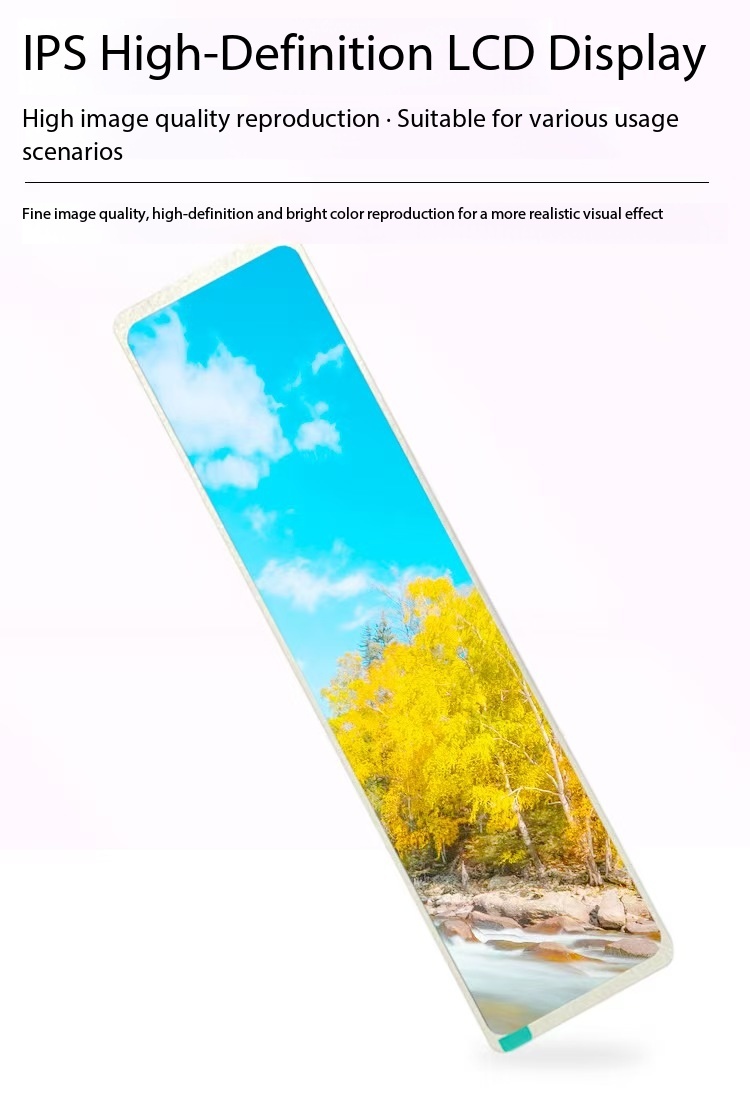

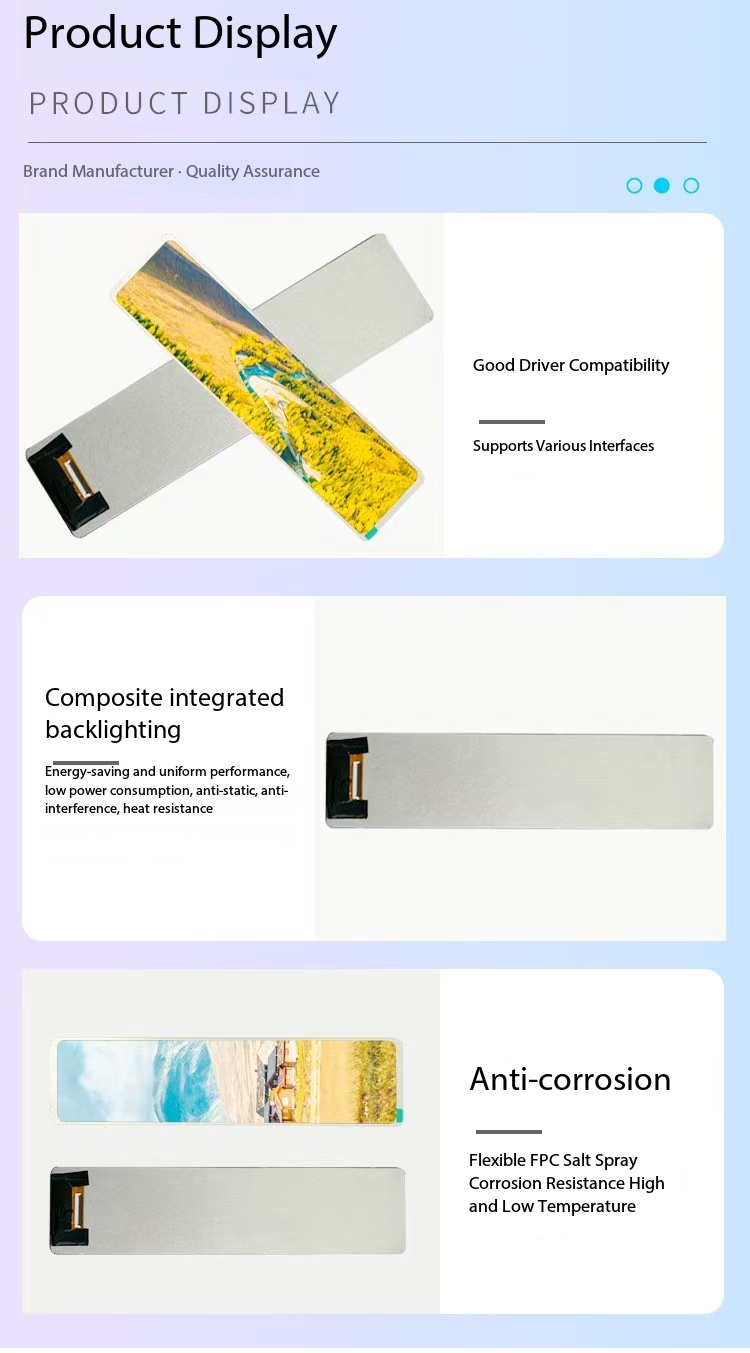

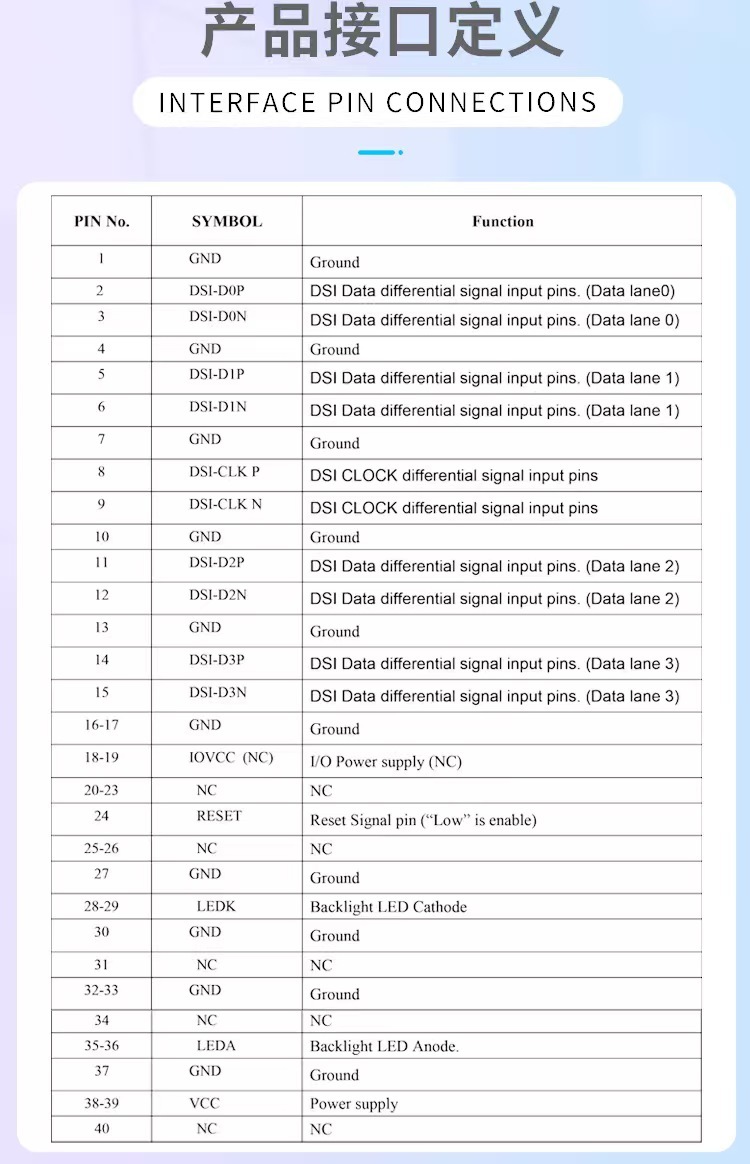

Product Picture


 11.26 inch IPS TFT LCD Module with 440RGBx1920 Resolution and MIPI Interface 011.26 inch IPS TFT LCD Module with 440RGBx1920 Resolution and MIPI Interface 111.26 inch IPS TFT LCD Module with 440RGBx1920 Resolution and MIPI Interface 2

 11.26 inch IPS TFT LCD Module with 440RGBx1920 Resolution and MIPI Interface 3

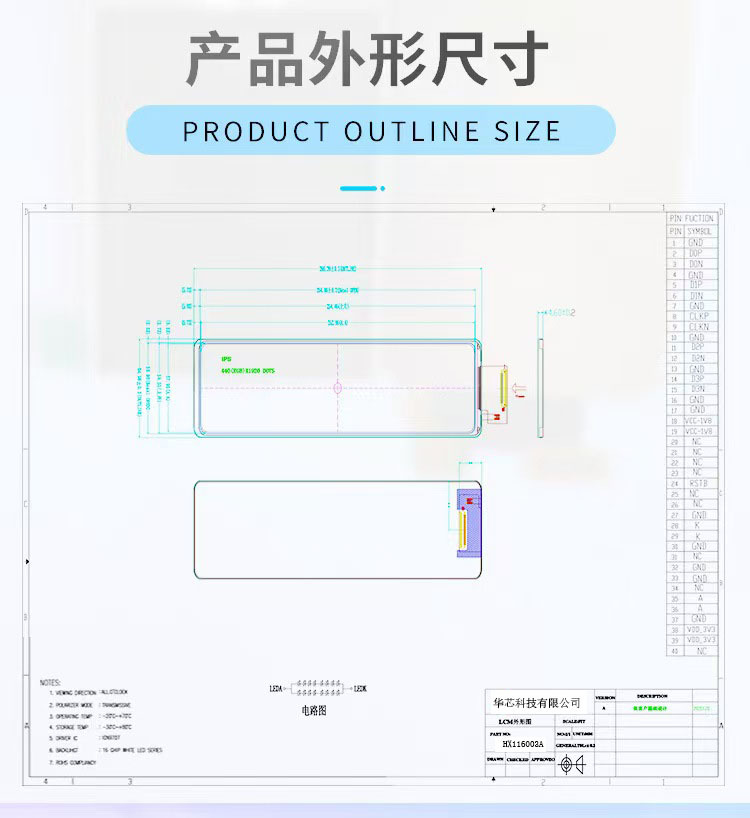

Technical Drawing


11.26 inch IPS TFT LCD Module with 440RGBx1920 Resolution and MIPI Interface 411.26 inch IPS TFT LCD Module with 440RGBx1920 Resolution and MIPI Interface 5


TFT Technology Overview
TFT substrate input and CF substrate input flow chart TFT structure diagram
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
  • Cost-effective factory base in inland city
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • Expert engineering team with 20+ years experience
  • Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
  • Registered capital: 20 million
  • Current staff: 500+ employees
  • R&D accounts for 10% of workforce
  • QC accounts for 15% of workforce
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands of logarithms/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response times for quick pixel switching
  • Wide viewing angles with minimal color shifts
  • Energy-efficient operation
  • Available in various sizes from small handheld to large panel displays
  • LED backlighting for screen illumination
  • Wide range of applications across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio
  • Backlighting requirements and power consumption
  • Response time limitations and potential motion blur
  • Limited flexibility in display form factors
  • Limited color gamut range
